220kV three-phase oil-immersed power transformers
Overview

The company 220 kv transformer, the use of the French areva analysis software and the company special computer and validation procedures, for transformer core, coil, machine body, lead, tank etc all-round optimization design and verification, to ensure that product performance. Superior technology and equipment, the careful material selection and efficient production, makeds the transformer has small volume, light weight, low loss, low partial discharge, low noise characteristics, the product quality is superior, energy conservation and environmental protection, easy installtion and maintenance, reliable operation and stable, reliable, economic and environmental characteristics, suitable for power plants, substations, large industrial and mining petrochemical enterprise, etc.

  • Execution standard

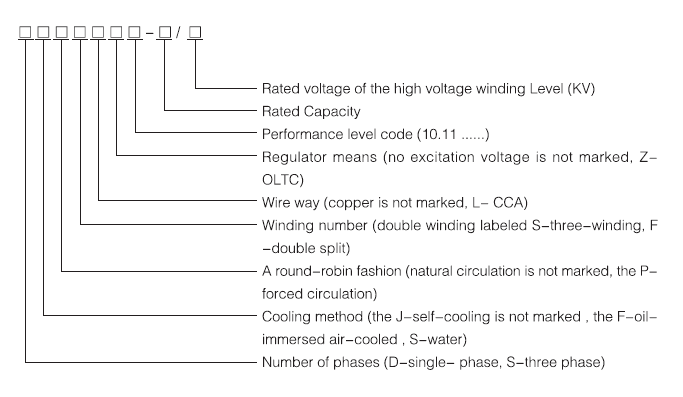

  • Model
  • Performance
  • Parameters
  • Appearance
    • 1GB1094、1～2-1996 power transformers
    • 2GB1094、3、5-2003 power transformers
    • 3GB6451-2008 three-phase oil-immersed power transformers technical parameters and needs
  • Performance characteristics
    • Low loss: no-load loss than the national standard GB6454-1999 fell by 40% or so, load loss than the national standard GB6451-1999 down 15%;
    • Low noise: noise level to reach 60 db below, than the national standards generally drop nearly 20 db. Users have special requirements, but also special design and manufacture (55 db below), satisfy the our country city residents power supply and demand;
    • Beautiful shape: the tank bending corrugated structure, shot-blasting, powder electric spray paint, wide blade plate radiator, swimming do not fade.
    • Low bureau put: 220 kv all the product process are clean homework, implement body internal metal parts, insulating parts all round turn, bureau in 70 PC y109.52 to control the following;
    • Anti-short circuit ability: the company to design and manufacture of SFP10-200000/220 transformer already through national transformer for quality supervision and inspection center short circuit capacity test.
    • No leakage: all seal seam allowance limit, upper and lower box along the double sealing, sealers import. Promise never leakage.
  • SFP10/220 kVthree-phase double winding no excitation voltage powertransformer technology parameters
    Rate volume (kVA) Rated voltage (kV) Vector group No-load loss (kW) On-load loss (kW) Excit. Curr. (%) Impedance (%)
    High voltage (kV) Low voltage (kV)
    31500 220±2×2.5%
    242±2×2.5%    		 6.3 YNd11 26128 0.3 12-14
    400006.631149
    5000010.536178
    6300011412080.2
    7500010.547237
    900001150272
    120000 11
    13.8
    15.75
    18
    20    		 61327
    15000083380
    160000854000.15
    18000090436
    240000105520
    30000015.75140620
    36000018160700
    37000020168720
    400000180770
    420000185800

    SFPS10/220kV low pressure 66kV level three-phase double-winding non-excitation regulator power transformers technical parameters
    Rate volume (kVA) Rated voltage (kV) Vector group No-load loss (kW) On-load loss (kW) Excit. Curr. (%) Impedance (%)
    High voltage (kV) Low voltage (kV)
    31500 220±2×2.5%
    242±2×2.5%    		 63
    66
    69    		 YNd11 29143 0.312-14
    4000034167
    5000040200
    63000472340.2
    9000055305
    12000070365
    15000085428
    180000904850.15
    240000110600

    SFZ10/220kV three-phase , two-winding OLTC power transformer technical parameters
    Rate volume (kVA) Rated voltage (kV) Vector group No-load loss (kW) On-load loss (kW) Excit. Curr. (%) Impedance (%)
    High voltage (kV) Low voltage (kV)
    31500 220±8×1.25% 6.3、6.6
    10.5、11
    35、37
    38.5    		 YNd11 25128 0.312-14
    4000032148
    5000035179
    63000452080.2
    90000 10.5、11
    35、37
    38.5    		 55272
    12000069327
    15000080383
    180000904420.15
    120000 66 69 703270.2
    15000085388
    180000954500.15

    OSSFP10/220kV three-phase three-winding excitation voltage auto power transformers technical parameters
    Rated volume (kVA) Rated voltage (kV) Vector group Step-up combination Step-down combination No-load current (%) Short-circult impedance (%)
    High voltage (kV) Medium pressure (kV) Lo voltage (kV) No-load loss On-load loss No-load loss On-load loss Step-up Step-down
    31500 220±2×2.5%
    242±2×2.5%    		 115
    121    		 6.6
    10.5
    11
    35
    37
    38.5    		YNa0d11 191111794 0.3 HV-MV
    12-14

    HV-LV
    8-12

    MV-LV
    14-18    		 HV-MV
    8-10

    HV-LV
    28-34

    MV-LV
    18-24
    400002213620114
    500002616123136
    6300030190271620.2
    900003825534221
    12000010.5、11
    13.8、
    15.75
    18、35
    37、38.5    		 4732142272
    1500005538349323
    18000062438563660.15
    2400007456367476

    SSFP10/220kV three-phase three-winding excitation voltage power transformers technical parameters
    Rated volume (kVA) Rated voltage Vector group No-load loss (kW) On-load loss (kW) No-load current (%) Short-circult impedance (%)
    High voltage (kV) Medium pressure (kV) Low voltage (kV) Step-up Step-down
    31500 220±2×2.5%
    242±2×2.5%    		 69
    125
    121    		 6.3
    6.6
    10.5
    11
    35
    37
    38.5    		 YNyn0d11 30153 0.3 HV-MV
    22-24

    HV-LV
    12-14

    MV-LV
    7-9    		 HV-MV
    12-14

    HV-LV
    22-24

    MV-LV
    7-9
    4000036178
    5000042212
    63000462380.2
    9000010.5、11
    13.8、35
    37、36.5    		 55322
    12000069408
    15000011
    13.8
    15.75
    35
    37
    38.5    		 80465
    180000905000.15
    240000120630
    300000140750

    SSFPZ10/220kV three-phase three-winding power transformer load tap technical parameters
    Rated volume (kVA) Rated voltage Vector group No-load loss (kW) On-load loss (kW) No-load current (%) Capacity allocation (%) Short-circult impedance (%)
    High voltage (kV) Medium pressure (kV) Low voltage (kV)
    31500 220±8×1.25% 69
    115
    121    		 6.3、6.6
    10.5、11
    35、37 38.5    		 YNyn0d11 32153 0.3 100/100/100
    100/50/100
    100/100/50    		 HV-MV
    12-14

    HV-LV
    22-24

    MV-LV
    7-9
    4000038178
    5000045210
    63000502410.2
    9000010.5
    11
    13.8
    35
    37
    36.5    		 59318
    12000070410
    15000080465
    180000905500.15
    240000115690

    OSSFPZ10/220 kVthree-phase three-winding power transformer OLTC auto technical parameters
    Rated volume (kVA) Rated voltage Vector group No-load loss (kW) On-load loss (kW) No-load current (%) Capacity allocation (%) Short-circult impedance (%)
    High voltage (kV) Medium pressure (kV) Low voltage (kV)
    31500 220±8×1.25% 115
    121    		 6.3、6.6
    10.5、11
    35、37 38.5    		 YNan0d11 20102 0.3 100/100/50 HV-MV
    8-10

    HV-LV
    28-34

    MV-LV
    18-24
    4000023125
    5000027148
    63000321780.2
    90000 10.5
    11
    35
    37
    36.5    		 39230
    12000045280
    15000052322
    180000563450.15
    24000062450
