35KV and below level three-phase oil-immersed power transformers

Overview

As the main power transformation equipment of medium and small-sized substation, this product is applied to 3-phases, 50Hz,35kV class and below electric power systems. It is used for industrial and agricultural power distribution, motive power and illumination. Our company absorbs domestic and foreign advanced technologies, adopts new materials and optimizes the design. As a result, the product becomes more reasonable, and electrical strength, mechanical strength and heat dissipation capability of the product have been abviously impored.

Execution standard

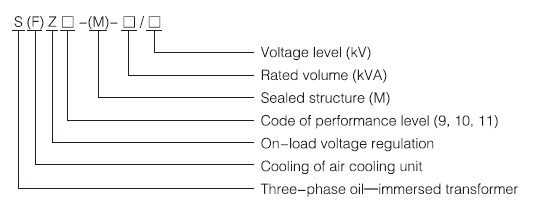

Model
Performance
Parameters
Appearance

- GB1094.1~2-1996 Power transformer
- GB1094.3,5-2003 Power transformer
- Technical parameters and requirements of GB/T6451-2008 three-phase oilimmersed power transformer
Performance characteristics
- All high-voltage windings are of multilayer cylinder structure and impulse voltage distribution of windings is improved.
- For low-voltage windings whose capacities range from 630 to 3,150kVA, cylinder or spiral type structure is adopted. With high mechanical strength and balanced distribution of ampere-turns, the product has strong capacity against short circuit.
- The body is additionally equipped with positioning mechanism in order to avoid displacement during transportation; in the meantime, all fasteners are additionally equipped with retaining nuts to guarantee that fasteners are not loosened during long-term running; moreover, the requirement of no pendant-core examination is satisfied.
- The iron core is made by laminating the inclined joints of high-quality cold-rolled grain orientated silicon steel sheet. The transformer adopts vacuum oil filling.
- After carrying out degreasing, derusting and phosphating, the product surface shall be sprayed with prime coat and non-paint. As a result, the product can satisfy the special operation requirements of metallurgy and petrifaction system as well as moist and dirty areas. With good-looking appearance, small volume and small occupied area for installation, all series of products are the ideal maintenance-free products.
- Small-volume transformer tank adopts corrugated plate and has respiratory function through which oil volume change caused by temperature change is compensated. As a result, transformer height is decreased and insulation property reduction is prevented effectively by avoiding the entering of oxygen and moisture.

Technical parameters of SZ9-(M)/35 series of three-phase oil—immersed loaded voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	± 3×2.5	10.5 6.3	Yd11	1.7	13.0	6.5	1.1	1930	1240	4600	3650	2850×1930×2430	1070×1070
1250					2.0	15.0		1.1	2200	1320	4950	3800	2900×1950×2450	1070×1070
1600					2.4	18.0		1.0	2550	1400	5300	3980	2950×1980×2490	1070×1070
2000					2.9	20.2		1.0	2770	1560	5960	4920	3010×2065×2540	1070×1070
2500					3.4	21.8		1.0	3300	1750	6950	5680	3035×2265×2610	1070×1070
3150	35 38.5				4.1	26.0	7.0	0.9	3770	1970	7900	6070	3160×2095×2640	1070×1070
4000					1.9	30.7		0.9	4520	2260	9110	7090	3290×2325×2890	1070×1070
5000					5.8	36.0		0.8	5480	2475	10860	8460	3350×2520×3000	1070×1070
6300					7.0	38.7		0.8	6810	2620	12300	9870	3475×2645×3050	1070×1070
8000			6.3 6.6 10.5 11		9.9	42.8	7.5	0.7	8060	3330	15300	12550	4600×3010×3280	1475×1475
10000					11.7	50.6	7.5	0.7	9770	3750	17860	14700	4700×3150×3390	1475×1475
12500					13.8	59.9	8.0	0.6	10960	4210	20050	17330	4850×3300×3500	1475×1475
16000					15.2	74.0		0.6	13950	4900	24150	21000	4900×3800×3680	1475×1475
20000					20.0	87.5		0.5	16700	6120	30100	25200	4950×3710×3650	1475×1475
25000					23.4	104.0		0.5	19800	8500	36500	28700	5050×3900×3850	1475×1475
31500					27.5	123.5		0.45	26300	99650	46800	39800	5130×4050×3920	2040×1475

Technical parameters of SZ10-(M)/35 series of three-phase oil—immersed loaded voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	± 3×2.5	10.5 6.3	Yd11	1.5	12.3	6.5	1.1	2030	1290	4785	3795	2905×1970×2480	1070×1070
1250					1.8	14.2		1.1	2310	1370	5150	3950	2960×1990×2500	1070×1070
1600					2.2	17.0		1.0	2680	1460	5510	4130	3010×2020×2540	1070×1070
2000					2.6	19.2		1.0	2910	1620	6195	5120	3070×2105×2590	1070×1070
2500					3.1	20.6		1.0	3465	1820	7230	5910	3095×2310×2660	1070×1070
3150	35 38.5				3.7	24.6	7.0	0.9	3960	2050	8215	6310	3225×2140×2700	1070×1070
4000					4.4	29.0		0.9	4750	2350	9475	7375	3355×2375×2950	1070×1070
5000					5.2	34.0		0.8	5750	2575	11295	8795	3420×2570×3060	1070×1070
6300					6.3	36.6		0.8	7150	2725	12795	10265	3545×2695×3115	1070×1070
8000			6.3 6.6 10.5 11	YNd11	8.8	40.4	7.5	0.7	8460	3460	15915	13050	4695×3190×3345	1475×1475
10000					10.4	47.8	7.5	0.7	10185	3900	18575	15290	4795×3215×3465	1475×1475
12500					12.3	56.6	8.0	0.6	11510	4380	20850	18025	4950×3255×3500	1475×1475
16000					13.5	70.0		0.6	14650	5095	25115	21840	4995×3880×3755	1475×1475
20000					17.8	83.0		0.5	17535	6365	31305	26210	5050×3890×3765	1475×1475
25000					20.8	98.5		0.5	20790	8840	37960	29850	5150×3980×3930	1475×1475
31500					24.5	117.0		0.45	27615	103640	48675	41400	5235×4130×3995	2040×1475

Technical parameters of SZ11-(M)/35 series of three-phase oil—immersed loaded voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	± 3×2.5	10.5 6.3	Yd11	1.3	11.1	6.5	1.1	2125	1365	5060	4015	2965×2010×2530	1070×1070
1250					1.6	14.2		1.1	2420	1450	5445	4180	3015×2030×2550	1070×1070
1600					1.9	17.0		1.0	2805	1540	5830	4378	3070×2060×2590	1070×1070
2000					2.3	19.2		1.0	3050	1720	6560	5410	3130×2150×2640	1070×1070
2500					2.7	20.6		1.0	3630	1925	7645	6250	3160×2355×2715	1070×1070
3150	35 38.5				3.2	24.6	7.0	0.9	4150	2165	8690	6680	2865×2180×2750	1070×1070
4000					3.9	29.0		0.9	4970	2490	10020	7810	3425×2420×3010	1070×1070
5000					4.6	34.0		0.8	6030	2730	11950	9310	3485×2620×3120	1070×1070
6300					5.5	36.6		0.8	7490	2885	13530	10860	3615×2750×3175	1070×1070
8000			6.3 6.6 10.5 11	YNd11	7.7	40.4	7.5	0.7	8870	3670	16830	13810	4785×3250×3410	1475×1475
10000					9.1	47.8	7.5	0.7	10670	4125	19645	16170	4890×3280×3535	1475×1475
12500					1.8	56.6	8.0	0.6	12060	4630	22055	19070	5045×3320×3570	1475×1475
16000					12.0	70.0		0.6	15345	5390	26565	23100	5110×3950×3830	1475×1475
20000					16.0	83.0		0.5	18370	6730	33110	27720	5150×3960×3840	1475×1475
25000					18.0	98.0		0.5	21780	9350	40150	31570	5250×4060×4010	1475×1475
31500					21.0	117.0		0.45	28930	109620	51480	43800	5340×4215×4080	2040×1475

Remark:

1. Please consult our company for the performance parameters, overall dimension and weight of large capacity of 35kV transformer.
2. The transformer with various voltage combinations, short circuit impedance and connection modes can be provided for the users according to actual demand.
3. In case of 8000kVA and above volume, transformer is provided for the air cooling unit according to the user’s demand.
4. The data and overall dimension in the form are for reference; in case of any changes, they are not notified any longer.

Technical parameters of S9-(M)/35 series of three-phase oil-immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	± 3×2.5	3.15 6.3 10.5	Yd11	1.48	12.2	6.5	1.0	1880	970	3780	3080	2400×1620×2490	820×820
1250					1.76	14.7		0.9	2070	1010	4080	3320	2420×1720×2470	820×820
1600					2.13	17.6		0.85	2480	1090	4660	3830	2465×1830×2520	820×820
2000					2.61	19.4		0.75	2830	1200	5300	4330	2545×1880×2600	1070×1070
2500					3.15	20.7		0.75	3410	1330	6170	5060	2610×2050×2670	1070×1070
3150	35 38.5				3.87	24.3	7.0	0.7	3900	1520	7100	5710	2700×2090×2690	1070×1070
4000					4.64	28.8		0.7	4730	1750	8620	7020	2770×2300×2800	1070×1070
5000					5.49	33.0		0.6	5600	1950	9950	7860	2865×2425×2870	1070×1070
6300					6.60	36.9		0.6	6860	2320	11580	9460	3090×2285×3150	1475×1475
8000			3.15 3.3 6.3 6.6 10.5 11	YNd11	9.00	40.5	7.5	0.55	8090	2500	14120	11500	3230×3050×3280	1475×1475
10000					10.6	47.7	7.5	0.55	9860	2850	16480	13500	3380×3150×3370	1475×1475
12500					12.6	56.7	8.0	0.5	10930	3250	18340	14890	3550×3190×3430	1475×1475
16000					15.3	69.3		0.5	13450	3750	22410	18350	3910×3350×3580	1475×1475
20000					18.1	83.7		0.5	14200	5700	28800	23500	3950×3400×3620	1475×1475
25000					21.5	99.0		0.5	19650	7130	35600	28000	4950×4550×3850	1475×1475
31500					25.7	118.8		0.4	26000	12200	42100	36000	5020×4700×3950	2040×1475

Technical parameters of S10-(M)/35 series of three-phase oil-immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	± 3×2.5	3.15 6.3 10.5	Yd11	1.32	11.48	6.5	1.0	1980	1020	3970	3235	2440×1645×2540	820×820
1250					1.57	13.86		0.9	2180	1060	4280	3490	2470×1750×2550	820×820
1600					1.90	16.58		0.85	2610	1145	4890	4020	2515×1870×2550	820×820
2000					2.32	18.28		0.75	2980	1260	5565	4550	2600×1920×2650	1070×1070
2500					2.80	19.55		0.75	3580	1400	6480	5320	2670×2090×2750	1070×1070
3150	35 38.5				3.44	22.95	7.0	0.7	4095	1590	7455	5995	2755×2130×2750	1070×1070
4000					4.12	27.20		0.7	4970	1840	9050	7370	2830×2350×2855	1070×1070
5000					4.88	31.20		0.6	5880	2050	10450	8255	2930×2480×2930	1070×1070
6300					5.84	34.85		0.6	7200	2450	12160	9930	3150×2330×3220	1475×1475
8000			3.15 3.3 6.3 6.6 10.5 11	YNd11	8.00	38.25	7.5	0.55	8500	2630	14830	12075	3295×3110×3345	1475×1475
10000					9.44	45.05	7.5	0.55	10350	3000	17310	14180	3450×3210×3440	1475×1475
12500					11.20	53.55	8.0	0.5	11500	3400	19260	15635	3620×3255×3500	1475×1475
16000					13.60	65.45		0.5	14130	3940	23530	19270	3980×3420×3650	1475×1475
20000					16.08	79.05		0.5	14910	5990	30240	24675	4030×3470×3690	1475×1475
25000					19.12	93.50		0.5	20650	7490	37380	29400	5050×4640×3930	1475×1475
31500					22.80	112.2		0.4	27300	12810	44205	37800	5120×4800×4030	2040×1475

Technical parameters of S11-(M)/35 series of three-phase oil-immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)				Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Voltage combination (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Transport weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
1000	35	±5	3.15 6.3 10.5	Yd11	1.16	11.48	6.5	1.0	2070	1070	4160	3390	2500×1690×2590	820×820
1250					1.37	13.86		0.9	2280	1110	4490	3650	2520×1790×2590	820×820
1600					1.66	16.58		0.85	2730	1200	5130	4220	2560×1910×2620	820×820
2000					2.03	18.28		0.75	3120	1320	5830	4770	2650×1955×2700	1070×1070
2500					2.45	19.55		0.75	3750	1465	6790	5560	2720×2135×2780	1070×1070
3150	35 38.5				3.01	22.95	7.0	0.7	4290	1680	7810	6280	2800×2180×2800	1070×1070
4000					3.61	27.20		0.7	5200	1930	9490	7720	2880×2390×2910	1070×1070
5000					4.27	31.20		0.6	6160	2150	10950	8650	2980×2520×2990	1070×1070
6300					5.11	34.85		0.6	7550	2550	12740	10410	3215×2380×3275	1475×1475
8000		±2×2.5	3.15 3.3 6.3 6.6 10.5 11	YNd11	7.00	38.25	7.5	0.55	8900	2750	15540	12650	3360×3170×3280	1475×1475
10000					8.26	45.05	7.5	0.55	10850	3140	18130	14850	3515×3280×3500	1475×1475
12500					9.80	53.55	8.0	0.5	12020	3580	20180	16380	3690×3320×3570	1475×1475
16000					11.90	65.45		0.5	14795	4125	24650	20185	4065×3490×3930	1475×1475
20000					14.07	79.05		0.5	15620	6270	31680	25850	4110×3550×3770	1475×1475
25000					16.73	93.50		0.5	21615	7840	39160	30800	5150×4730×4000	1475×1475
31500					19.95	112.2		0.4	28600	13420	46310	39600	5220×4890×4110	2040×1475

Technical parameters of S9-(M)/35 series of double winding non-excitation voltage regulation power distribution transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
50	35	±5	0.4	Yyn0 or Dyn11	220	1220	6.5	2.0	246	265	710	1100×875×1715	550×550
100					310	2030		1.8	382	336	960	1190×915×1780	550×550
125					350	2390		1.8	485	410	1200	1220×1040×1780	550×550
160					370	2840		1.7	520	430	1350	1240×1070×1810	550×550
200					440	3330		1.6	615	477	1400	1380×780×1875	660×660
250					520	3960		1.4	683	500	1560	1540×880×1820	660×660
315					620	4770		1.4	835	568	1840	1440×800×1975	660×660
400					740	5760		1.3	1020	655	2090	1660×825×1995	660×660
500					880	6930		1.3	1166	725	2390	1710×865×2030	660×660
630					1050	8280		1.3	1415	797	2835	1630×1235×2070	660×660
800					1250	9900		1.1	1632	845	3240	1655×1415×2120	820×820
1000					1480	12200		1.0	2080	965	3980	1860×1435×2220	820×820
1250					1770	14700		0.9	2330	1110	4520	1890×1640×2260	820×820
1600					2140	17600		0.8	2900	1200	5350	2050×1720×2390	1070×1070
2000					2500	20700		0.7	3180	1330	5760	2400×1900×2410	1070×1070
2500					2980	24500		0.7	3410	1400	6550	2500×1930×2700	1070×1070
3150					3600	29500		0.7	4450	1800	8350	2600×2100×2800	1070×1070

Technical parameters of S10-(M)/35 series of double winding non-excitation voltage regulation power distribution transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
50	35	±5	0.4	Yyn0 or Dyn11	200	1150	6.5	2.0	260	275	740	1120×890×1750	550×550
100					280	1920		1.8	400	350	995	1220×940×1820	550×550
125					310	2260		1.8	510	430	1250	1250×1060×1820	550×550
160					330	2680		1.7	550	450	1405	1270×1095×1850	550×550
200					390	3150		1.6	645	495	1460	1410×795×1915	660×660
250					460	3740		1.4	720	520	1625	1575×905×1860	660×660
315					550	4510		1.4	880	590	1915	1470×820×2020	660×660
400					660	5440		1.3	1070	680	2175	1695×845×2040	660×660
500					780	6550		1.3	1225	760	2485	1745×885×2070	660×660
630					930	7820		1.3	1485	830	2950	1665×1260×2115	660×660
800					1120	9350		1.1	1715	880	3370	1690×1450×2160	820×820
1000					1320	11480		1.0	2185	1005	4140	1900×1465×2265	820×820
1250					1570	13860		0.9	2450	1160	4700	1930×1680×2310	820×820
1600					1900	16580		0.8	3045	1250	5570	2090×1755×2440	1070×1070
2000					2230	19550		0.7	3340	1390	5990	2450×1940×2460	1070×1070
2500					2650	23140		0.7	3580	1460	6810	2550×1970×2755	1070×1070
3150					3200	27870		0.7	4670	1870	8685	2660×2150×2900	1070×1070

Technical parameters of S11-(M)/35 series of double winding non-excitation voltage regulation power distribution transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
50	35	±5	0.4	Yyn0 or Dyn11	170	1150	6.5	2.0	270	295	785	1160×920×1800	550×550
100					240	1920		1.8	420	370	1060	1250×960×1870	550×550
125					270	2260		1.8	535	455	1320	1280×1090×1870	550×550
160					290	2680		1.7	575	475	1485	1310×1130×1900	550×550
200					340	3150		1.6	680	530	1540	1450×820×1970	660×660
250					400	3740		1.4	755	550	1720	1620×930×1910	660×660
315					480	4510		1.4	920	625	2030	1510×840×2075	660×660
400					580	5440		1.3	1125	720	2300	1750×870×2095	660×660
500					680	6550		1.3	1285	800	2630	1795×910×2140	660×660
630					520	7820		1.3	1560	880	3120	1720×1295×2180	660×660
800					980	9350		1.1	1795	930	3570	1740×1490×2230	820×820
1000					1160	11480		1.0	2290	1065	4380	1960×1510×2330	820×820
1250					1380	13860		0.9	2565	1220	4980	1990×1730×2380	820×820
1600					1660	16580		0.8	3190	1320	5885	2155×1810×2510	1070×1070
2000					1950	19550		0.7	3500	1465	6340	2520×1995×2530	1070×1070
2500					2320	23140		0.7	3750	1540	7210	2630×2030×2840	1070×1070
3150					2800	27870		0.7	4895	1980	9190	2730×2210×2940	1070×1070

Remark:

1. Please consult our company for the performance parameters, overall dimension and weight of larger capacity of 35kV transformer.
2. The transformer with various voltage combinations, short circuit impedance and connection modes can be provided for the users according to actual demand.
3. The data and overall dimension in the form are for reference; in case of any changes, they are not notified any longer.

Technical parameters of S9(M)/10 series of three-phase oil—immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
30	6 6.3 10 10.5 11	±5 ±2×2.5	0.4	Yyn0 or Dyn11	130	600	4.0	2.1	150	88	320	780×480×890	400×400
50					170	870		2.0	208	99	430	780×635×905	400×400
63					200	1040		1.9	231	102	450	850×630×910	400×400
80					250	1250		1.8	256	102	500	805×740×925	550×550
100					290	1500		1.6	319	120	630	1010×760×960	550×550
125					340	1800		1.5	362	129	660	1015×710×970	550×550
160					400	2200		1.4	420	142	745	1025×720×985	550×550
200					480	2600		1.3	473	165	865	1035×720×1065	550×550
250					560	3050		1.2	612	185	1030	1075×750×1095	550×550
315					670	3650		1.1	696	193	1160	1315×935×1155	660×660
400					800	4300		1.0	832	269	1395	1370×920×1170	660×660
500					960	5150		1.0	987	272	1675	1401×1000×1275	660×660
630					1200	6200	4.5	0.9	1181	295	2020	1410×970×1340	820×820
800					1400	7500		0.8	1296	410	2380	1580×1070×1355	820×820
1000					1700	10300		0.7	1415	444	2660	1730×1220×1420	820×820
1250					1950	12000		0.6	1672	557	3280	1980×1280×1490	820×820
1600					2400	14500		0.6	2085	649	4040	1920×1355×1585	820×820
2000					2850	19500	5.5	0.6	2415	883	4855	1980×1470×1660	1070×1070
2500					3000	21300	5.5	0.6	2975	975	5715	2145×1460×2250	1070×1070
3150					3550	24300	6.0	0.4	4124	1621	7625	2415×1775×2720	1070×1070

Technical parameters of S10(M)/10 series of three-phase oil—immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
30	6 6.3 10 10.5 11	±5 ±2×2.5	0.4	Yyn0 or Dyn11	110	600	4.0	2.1	150	88	320	780×480×890	400×400
50					150	870		2.0	208	99	430	780×635×905	400×400
63					180	1040		1.9	231	102	450	850×630×910	400×400
80					200	1250		1.8	256	102	500	805×740×925	550×550
100					230	1500		1.6	319	120	630	1010×760×960	550×550
125					270	1800		1.5	362	129	660	1015×710×970	550×550
160					310	2200		1.4	420	142	745	1025×720×985	550×550
200					380	2600		1.3	473	165	865	1035×720×1065	550×550
250					460	3050		1.2	612	185	1030	1075×750×1095	550×550
315					540	3650		1.1	696	193	1160	1315×935×1155	660×660
400					650	4300		1.0	832	269	1395	1370×920×1170	660×660
500					780	5150		1.0	987	272	1675	1401×1000×1275	660×660
630					920	6200	4.5	0.9	1181	295	2020	1410×970×1340	820×820
800					1120	7500		0.8	1296	410	2380	1580×1070×1355	820×820
1000					1320	10300		0.7	1415	444	2660	1730×1220×1420	820×820
1250					1560	12000		0.6	1672	557	3280	1980×1280×1490	820×820
1600					1880	14500		0.6	2085	649	4040	1920×1355×1585	820×820
2000					2410	19500	5.5	0.6	2415	883	4855	1980×1470×1660	1070×1070
2500					2670	21300	5.5	0.6	2975	975	5715	2145×1460×2250	1070×1070
3150					3170	24300	6.0	0.4	4124	1621	7625	2415×1775×2720	1070×1070

Technical parameters of S11(M)/10 series of three-phase oil—immersed non-excitation voltage regulation power transformer
Rated volume (kVA)	Voltage combination			Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	Weight (Kg)			Outline dime. Length × width × height (mm)	Track gauge (mm)
Rated volume (kVA)	High voltage (kV)	Branching (%)	Low voltage (kV)	Conn. Symb. No.	No-load loss (kW)	On-load loss (kW)	Impedance (%)	Excit. Curr. (%)	The body weight	Oil weight	Total weight	Outline dime. Length × width × height (mm)	Track gauge (mm)
30	6 6.3 10 10.5 11	±5 ±2×2.5	0.4	Yyn0 or Dyn11	100	600	4.0	2.1	150	88	320	780×480×890	400×400
50					130	870		2.0	208	99	430	780×635×905	400×400
63					150	1040		1.9	231	102	450	850×630×910	400×400
80					180	1250		1.8	256	102	500	805×740×925	550×550
100					200	1500		1.6	319	120	630	1010×760×960	550×550
125					240	1800		1.5	362	129	660	1015×710×970	550×550
160					280	2200		1.4	420	142	745	1025×720×985	550×550
200					340	2600		1.3	473	165	865	1035×720×1065	550×550
250					400	3050		1.2	612	185	1030	1075×750×1095	550×550
315					480	3650		1.1	696	193	1160	1315×935×1155	660×660
400					570	4300		1.0	832	269	1395	1370×920×1170	660×660
500					680	5150		1.0	987	272	1675	1401×1000×1275	660×660
630					810	6200	4.5	0.9	1181	295	2020	1410×970×1340	820×820
800					980	7500		0.8	1296	410	2380	1580×1070×1355	820×820
1000					1150	10300		0.7	1415	444	2660	1730×1220×1420	820×820
1250					1360	12000		0.6	1672	557	3280	1980×1280×1490	820×820
1600					1640	14500		0.6	2085	649	4040	1920×1355×1585	820×820
2000					1980	19500	5.5	0.6	2415	883	4855	1980×1470×1660	1070×1070
2500					2350	21300	5.5	0.6	2975	975	5715	2145×1460×2250	1070×1070
3150					2800	24300	6.0	0.4	4124	1621	7625	2415×1775×2720	1070×1070

Remark:

1. Please consult our company for the performance parameters, overall dimension and weight of larger capacity of 10kV transformer.
2. The transformer with various voltage combinations, short circuit impedance and connection modes can be provided for the users according to actual demand.
3. Special transformers such as rectification transformer, electric furnace transformer, mining transformer, loaded voltage regulation transformer and sealed hood type transformer are provided according to the user’s actual demand.
4. The data and overall dimension in the form are for reference; in case of any changes, they are not notified any longer.

No.218, Wusong Road, Shanghai, China [sales headquarters] 200080 400-080-1921
F12, Shanghai Baokuang International BM Building
Address: No.666, Zhangwengmiao Road, Fengxian District, Shanghai Postal code:201400
Switchboard: 86-21-68866111 Fax:86-21-68860333
©2013 Shanghai Transformer Work Co., Ltd.
