Dry-type iron core series reactor

Products

Dry-type iron core reactor

Overview

Execution standard

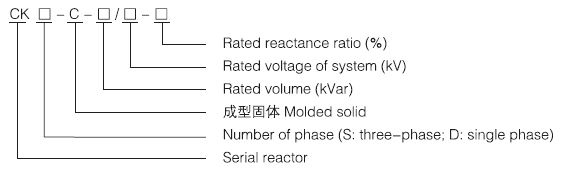

Model
Performance
Parameters
Appearance

- GB/T17211-1998 《Load Guidance of Dry Power Transformer》
- GB10229 JB5346 IEC60076-6
Basic ordering data
- Rated volume;
- Rated voltage;
- Rated reactance ratio;
- Rated current and maximum continuous current;
- Cooling mode(AN or AF);
- Utilization conditions (indoor);
- According to the application of parallel reactor, other required performance data is marked in the ontract.

Technical parameters of CKSC series of iron core serial reactor
Model	Parallel capacitor		Rated reactance rate (%)	Rated current (A)	Rated impedance (Ω)	Rated volume (kVar)	Loss 75℃ (W)	Outline dime.							Weight (kg)
Model	Rated volume (kVar)	Rated voltage (kV)	Rated reactance rate (%)	Rated current (A)	Rated impedance (Ω)	Rated volume (kVar)	Loss 75℃ (W)	a	b	c	d/e	f	h	i	Weight (kg)
CKSC-90/10-4.5	2000	11√3	4.5	105	2.72	90	1220	1050	740	1103	550/550	1121	416	330	720
CKSC-120/10-6		11√3	6	105	3.63	120	1300	1030	740	1151	550/550	1131	420	325	770
CKSC-240/10-12		12√3	12	96	8.66	240	2590	1350	850	1266	660/660	1246	436	430	1150
CKSC-108/10-4.5	2400	11√3	4.5	126	2.27	108	1170	1050	740	1163	550/550	1171	305	330	800
CKSC-144/10-6		11√3	6	126	3.02	144	1560	1060	740	1240	550/550	1220	328	335	845
CKSC-280/10-12		12√3	12	115	7.23	288	3110	1350	850	1266	660/660	1246	436	430	1250
CKSC-135/10-4.5	3000	11√3	4.5	157	1.82	135	1460	1060	740	1181	550/550	1161	357	335	790
CKSC-180/10-6		11√3	6	157	2.43	180	1940	1090	740	1265	550/550	1245	312	345	960
CKSC-360/10-12		12√3	12	144	5.77	360	3240	1360	850	1386	660/660	1366	374	435	1470
CKSC-162/10-4.5	3600	11√3	4.5	189	1.51	162	1760	1110	740	1230	550/550	1210	362	345	930
CKSC-216/10-6		11√3	6	189	2.02	216	2340	1360	850	1126	660/660	1106	363	435	1060
CKSC-432/10-12		12√3	12	173	4.81	432	3900	1630	1070	1635	1070/820	1615	343	525	2250
CKSC-180/10-4.5	4000	11√3	4.5	210	1.36	180	1940	1210	740	1285	550/550	1265	403	385	1280
CKSC-240/10-6		11√3	6	210	1.81	240	2590	1330	850	1186	660/660	1166	313	425	1000
CKSC-480/10-12		12√3	12	192	4.33	480	4321	1410	850	1451	660/660	1390	379	450	1740
CKSC-189/10-4.5	4200	11√3	4.5	220	1.30	189	2040	1210	740	1285	550/550	1265	403	385	1280
CKSC-252/10-6		11√3	6	220	1.73	252	2730	1350	850	1221	660/660	1201	311	430	1190
CKSC-504/10-12		12√3	12	202	4.12	504	3640	1440	850	1475	660/660	1451	376	460	1870
CKSC-216/10-4.5	4800	11√3	4.5	252	1.13	216	2340	1110	740	1381	550/550	1090	316	350	1070
CKSC-288/10-6		11√3	6	252	1.51	288	3110	1270	740	1381	550/550	1361	319	405	1310
CKSC-576/10-12		12√3	12	231	3.60	576	4150	1630	1070	1254	960/1000	1200	447	525	2130
CKSC-225/10-4.5	5000	11√3	4.5	262	1.09	225	2430	1360	850	1148	660/660	1095	362	435	1180
CKSC-300/10-6		11√3	6	262	1.45	300	3240	1290	740	1388	550/550	1270	319	410	1360
CKSC-600/10-12		12√3	12	241	3.45	600	4320	1630	1070	1254	960/1000	1200	447	525	2130
CKSC-243/10-4.5	5400	11√3	4.5	283	1.01	243	2630	1360	850	1148	660/660	1095	362	435	1180
CKSC-324/10-6		11√3	6	283	1.35	324	2920	1290	740	1421	550/550	1401	319	410	1460
CKSC-684/10-12		12√3	12	260	3.20	648	4670	1500	850	1594	820/660	1574	390	480	2500
CKSC-270/10-4.5	6000	11√3	4.5	315	0.91	270	2920	1290	850	1353	660/660	1360	319	410	1400
CKSC-360/10-6		11√3	6	315	1.31	360	3240	1270	850	1545	660/660	1525	362	405	1450
CKSC-720/10-12		12√3	12	289	2.88	720	5180	1600	1070	1594	820/820	1574	439	515	2415
CKSC-324/10-4.5	7200	11√3	4.5	378	0.76	324	2920	1290	850	1353	660/660	1360	319	410	1400
CKSC-432/10.6		11√3	6	378	1.01	432	3890	1420	850	1425	660/660	1405	390	455	1830
CKSC-864/10-12		12√3	12	346	2.40	864	6230	1740	900	1500	1070/820	1480	409	560	2960
CKSC-351/10-4.5	7800	11√3	4.5	409	0.70	351	3160	1320	850	1465	660/660	1445	340	420	1570
CKSC-468/10-6		11√3	6	409	0.93	468	4210	1410	850	1571	660/660	1551	374	450	1860
CKSC-936/10-12		12√3	12	375	2.22	936	6740	1750	1070	1679	820/820	1659	524	565	3250
CKSC-360/10-4.5	8000	11√3	4.5	420	0.68	360	3240	1320	850	1465	660/660	1445	340	420	1570
CKSC-480/40-6		11√3	6	420	0.91	480	4320	1410	850	1571	660/660	1551	374	450	1860
CKSC-960/10-12		12√3	12	385	2.16	960	6910	1750	1070	1679	820/820	1659	524	565	3250
CKSC-480/10-4.5	10000	11√3	4.5	525	0.54	450	4050	1390	850	1350	660/660	1350	328	445	1720
CKSC-600/10-6		11√3	6	525	0.73	600	4320	1510	850	1441	660/660	1421	402	485	2270
CKSC-1200/10-12		12√3	12	481	1.73	1200	6480	2010	1070	1760	1070/820	1740	410	650	3760
CKSC-30/6-5	600	6.6√3	5	52	3.66	30	450	930	590	1211	550/400	1191	271	290	410
CKSC-36/6-6	600	6.6√3	6	52	4.40	36	650	930	590	1211	550/400	1191	271	290	410
CKSC-45/6-5	900	6.6√3	5	79	2.41	45	680	960	590	1041	400/400	1021	185	300	510
CKSC-54/6-6	900	6.6√3	6	79	2.89	54	810	960	590	1041	400/400	1021	185	300	510
CKSC-60/6-5	1200	6.6√3	5	105	1.81	60	810	970	590	1013	550/400	955	332	305	550
CKSC-72/6-6	1200	6.6√3	6	105	2.18	72	970	910	740	1101	550/550	1081	294	285	510
CKSC-75/6-5	1500	6.6√3	5	131	1.45	75	1010	910	740	1101	550/550	1221	294	285	510
CKSC-90/8-6	1500	6.6√3	6	131	1.75	90	1210	940	740	1241	660/550	1221	346	295	640
CKSC-120/6-5	2400	6.6√3	5	210	0.91	120	1300	1060	740	1261	550/550	1241	307	335	830
CKSC-144/6-6	2400	6.6√3	6	210	1.09	144	1560	990	740	1261	550/550	1241	343	310	790
CKSC-180/6-5	3600	6.6√3	5	315	0.60	180	1940	1120	740	1355	550/550	1335	312	355	1080
CKSC-216/6-6	3600	6.6√3	6	315	0.73	216	2340	1200	740	1317	550/550	1297	310	380	1055
CKSC-200/6-5	4000	6.6√3	5	350	0.54	200	2160	1260	850	1281	660/660	1261	316	400	1200
CKSC-240/6-6	4000	6.6√3	6	350	0.65	240	2600	1200	740	1317	550/550	1297	310	380	1075
CKSC-360-35-6	6000	22	6	90.9	14.5	360	3240	2400	900	1675	2×740	1576	560	740	2210
CKSC-720/35-12	6000	24	12	83.3	34.6	720	5180	2280	1295	2020	2×740	1831	647	620	3800
CKSC-432/35-6	7200	22	6	109	12.1	432	3890	2400	900	1950	2×740	1596	590	740	2950
CKSC-864/35-12	7200	24	12	100	28.8	864	6230	2310	1295	2190	2×750	1851	667	750	4240
CKSC-600/35-6	10000	22	6	152	8.68	600	4320	2500	1350	1950	2×810	1851	662	810	4550
CKSC-1200/35-12	10000	24	12	139	20.7	1200	6480	2560	1390	1915	2×835	1846	655	835	4850

Schematic diagram of appearance and installation of dry iron core serial reactor
